Manual static lockable balance valve

Working pressure: 20 bar
Working medium: Water, oil, and other non-corrosive liquid
Working temperature: 0°C ≤ T ≤ 120°C (from 32°F to 248°F)
End Connection: BSP, NPT

Send Inquiry

Ce Certified Quality Guarantee Manual static brass balance valves

1. Product features and application of Manual static brass balance valves
● Working pressure: 20 bar
● Working medium: Water, oil, and other non-corrosive liquid
● Working temperature: 0° C≤ T≤ 120° C (from 32°F to 248° F)
● End Connection: BSP, NPT
● Thread standard: ISO228(equivalent to DIN 259 and BS2779)
● Size: 3/4"-1¼"
● Packing: Inner boxes in cartons, loaded in pallets
● Surface color

Chromed Plated

Nickel Plated

Zinc Plated

Brass color







● Certificate: CE, SGS, ISO9001, ISO14001

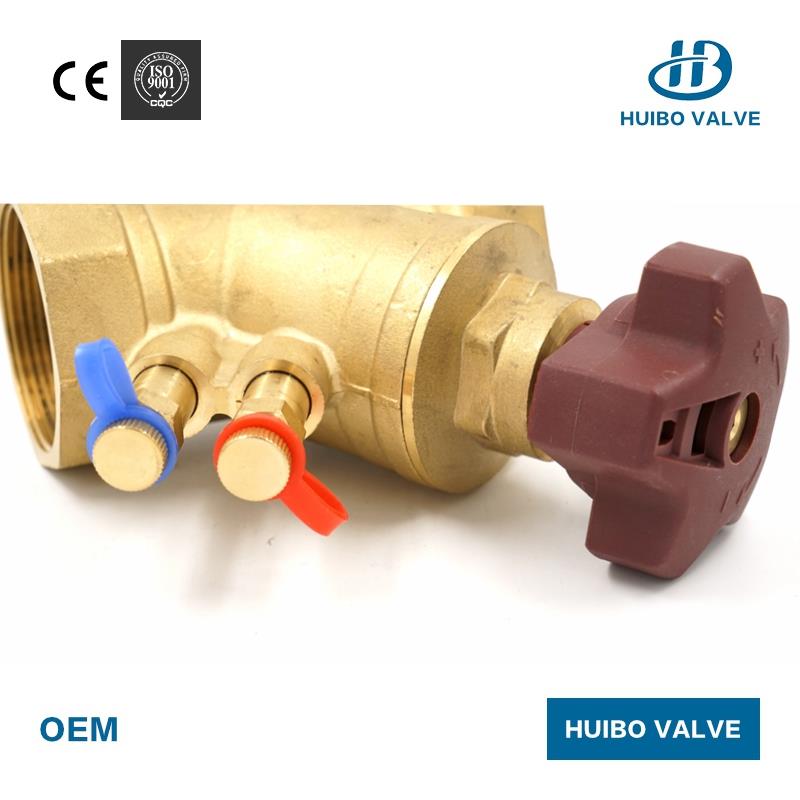

94 Manual-Static-Lockable-Balance-Valve.jpg

2. Material specifications of Manual static brass balance valves


NO.

Part Name

Material

1

Body

Brass

2

Ball

Brass

3

Stem

Brass

4

Handle wheel

POM

5

Cartriage

Brass

6

Jumper

Brass

7

Spring

STAINLESS STEEL

8

Pole

Brass

9

O-ring

EPDM



3. Dimensions of Manual static brass balance valves


DN(mm)

Spec(Inch)

L(mm)

H(mm)

20

3/4"

84

90

25

1"

91

93

32

1¼"

110

98



4. Product introduction of Manual static brass balance valves
Manual static brass balance valves are devices which are used to make optimal adjustments to the flow rate of the system both in the heating and in the cooling phase. In fact, by installing balancing valves, circuits can be properly balanced guaranteeing ideal speeds of the thermal carrying fluid and differential pressures necessary for the regulation units to function correctly. A correct balancing allows machines to work near maximum yield reducing problems. Manual static lockable are recommended in applications with constant flow rates.


5. Certificate of product
Certificate of product.jpg
