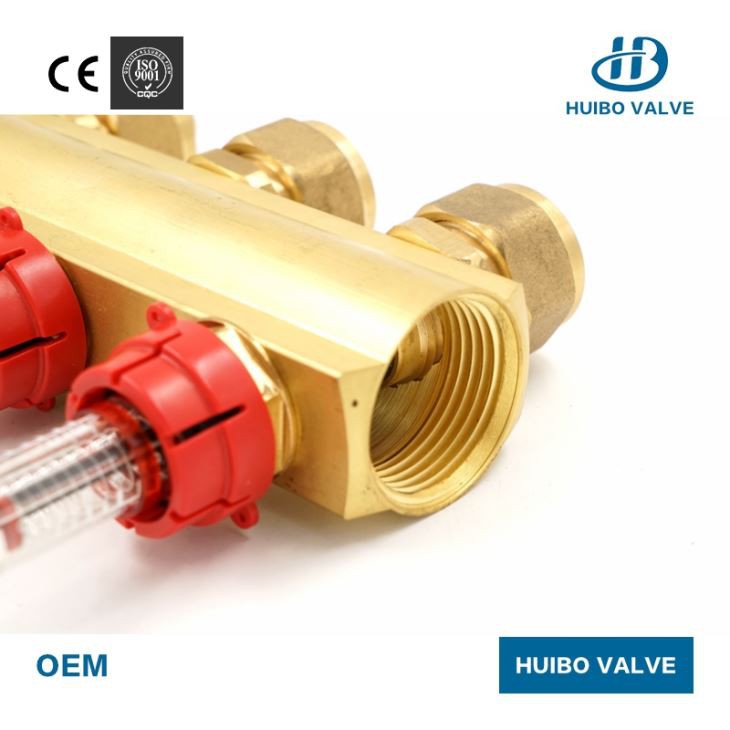

Brass Manifold with Flow Meters

Material: forged H59 copper main bar
Type: manual control manifold with long/short flow meter
Main pipe thickness: 2.5-2.8mm
Branch: 2-8 ways or more
Maximum working pressure: 10bar

Send Inquiry

Thermostatic manifold H59 copper material with long/short visible flow meter for HAVC system

1. Product specification





Spec.

B

C(mm)

D(mm)

E(mm)

F(mm)

1"

¾"

50

258

210

350

1¼"

¾"

50

258

210

365


2. Product features and application
• Material: forged H59 copper main bar
• Type: manual control manifold with long/short flow meter
• Main pipe thickness: 2.5-2.8mm
• Branch: 2-12 ways
• Maximum working pressure: PN16
• Medium temperature: 0℃~100℃
• Medium: water (Max. Percentage of glycol is 30%)
• Connection end: Female threaded comply with ISO228(BS2779); alternative connection end: Male threaded
• Connection: 1", 1-1/4"
• Installation: bracket or baffle
• Outlet selection: 3/4"*18 (16*2.0mm, 20*2.0mm)
• Surface color

Chromed Plated

Nickel Plated

Zinc Plated

Brass color







• Fields of application: water, gas, heating system
• Certificate: CE SGS ISO9001


3. Material specification

NO.

Part Name

Material

1

Body

Forged Brass

2

Stem

Forged Brass

3

Connection pipe

Aluminium pipe, PB pipe, PERT pipe

4

Bracket

Nickel plated brass

5

Seal Material

PTFE


4. Product introduction of the Brass manifold with flow meters
Flow meters manifold is Specialized in the low-temperature ground radiation heating, each water outlet branch has a flow meter regulating valve (a locking valve with a flow meter, a manual flow adjustment, an Allen wrench adjustment); Each backwater branch has a thermostatically adjustable valve, and an electric thermostat can be installed by the room thermostat to achieve an independent temperature control. The backwater is provided with a regulating valve, which can accurately adjust the size of the backwater flow and realize loop adjustment.
It can be 2-12ways, using hot extrusion of copper profiles which is with high density, and good stability; the main pipe and the branch pipe are sealed by thread and anaerobic adhesive, with excellent leakproof performance; Surface with brass sanding sandstone or polished nickel plating is treated with a special anti-corrosion process and is durable.


5. Certificate of productCertificate of product

6. Company show

Huibo-valve-factory-brass-valve
