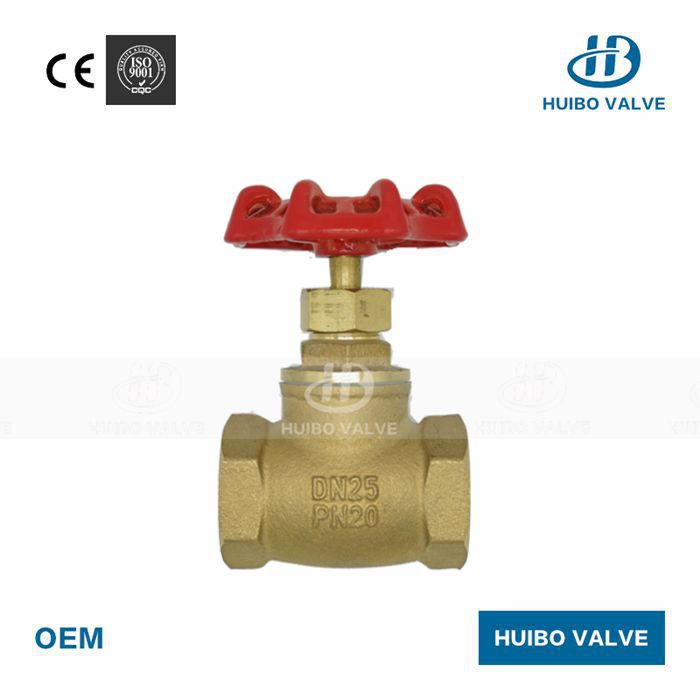

Forged Brass Stop Valve

Working pressure: 1.6Mpa
125WOG
316 stainless steel
Hydrostatic shell test at 300 psi
Working medium: Water

Send Inquiry

Full Port globe valve, 1/2"~2"inch pipe, brass stop valve with globe type handle

1. Product features and application of forged brass stop valve
● Working pressure: 1.6Mpa
● 125WOG
● 316 stainless steel
● Hydrostatic shell test at 300 psi
● Working medium: Water
● Working temperature: -20° C ≤ T ≤ 150° C
● Thread or Sweat
● Thread standard: ISO7/1, ISO228, NPT, DIN2999
● Wheel Hands
● Surface color

Chromed Plated

Nickel Plated

Zinc Plated

Brass color







● Certificate: CE, SGS, ISO9001



2. Material specifications of forged brass stop valve

NO.

Part Name

Material

1

Body

Brass

2

Name Plate

Aluminum

3

Stem

Brass

4

Hand wheel

Cast Iron

5

Bonnet

Brass

6

Seat Screw

Brass

7

Seat Packing

BUNA SN-919F

8

Packing Nut

Brass

9

Gland Packing

PTFE


3. Dimensions of forged brass stop valve

Spec(Inch)

D(inch)

H(inch)

L(inch)

Weight

1/2"

2.09

2.52

2.11



3/4"

2.09

2.52

2.13



1"

2.09

2.52

2.68




4. Product introduction of forged brass stop valve
Forged brass stop valve is a type of valve used for regulating flow in a pipeline, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body. This forged brass stop valve that can be closed or opened at will, as by hand, for preventing or regulating flow, as of a liquid in a pipe; - in distinction from a valve which is operated by the action of the fluid it restrains. A non return valve is one directional. It allows flow in a designated direction, and prevents flow back thru the valve.
