White Thermostatic Radiator Valve Kit
White PEX thermostatic radiator valve kit， thermostatic radiator valve with manual handle
1. Product features
-Forged brass CW617N
-Fields of Applications: Water, Hot water
-Maximum Working Pressure: 1.6Mpa
-Control temperature range: 0 - 30°C
-Working temperature: 0ºC ~ 120ºC (from 32°F to 248°F)
-Optional radiator side connection size : 3/8'', 1/2''
-Connection way: PEX 12/16mm or PEX16/20mm
-Certificate: CE, SGS, ISO9001
-100% leakage tested
-100000 times valve core tested

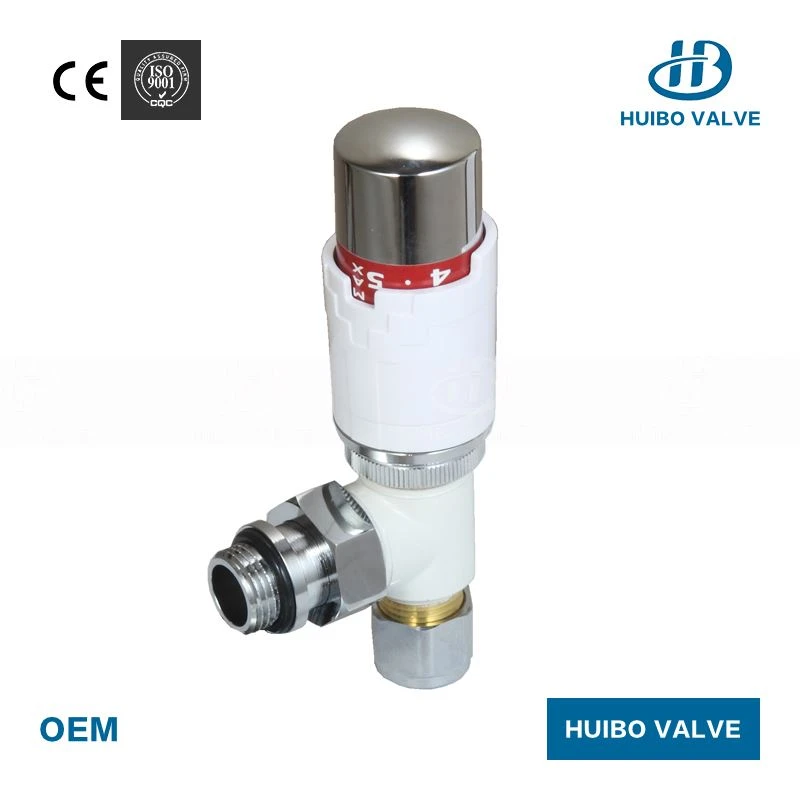

White PEX end thermostatic radiator valve with white TRV head
White PEX end thermostatic radiator valve with manual handle
White PEX end lockshield radiator valve
3. Material specifications
NO. | Part Name | Material |
1 | Cartridge | Forged Brass |
2 | Body | Forged Brass |
3 | Nut | Brass |
4 | Union | Brass |
5 | Screw Protector | Brass |
6 | TRV head | Liquid sensor |
4. Product introduction
The white thermostatic radiator valve kit is painted with white color laquer. The PEX compression connection end could installed with the PEX pipe for house heating system. PEX connection size is available with 12/16mm and 16/20mm. White painted surface will have a better outlooking and good anti-corrosive ability.
This PEX Thermostatic valve is with the TRV head. In house heating system, it is very popular and could save the energy and money efficiently.
5. Certificate of product
6.Our technological process
7. Our factory
